Windows 11 Release Guard

Policy Feed And Trust Model

Use this when changing policy source loading, signature verification, manifest checks, key rotation, or public API aliases.

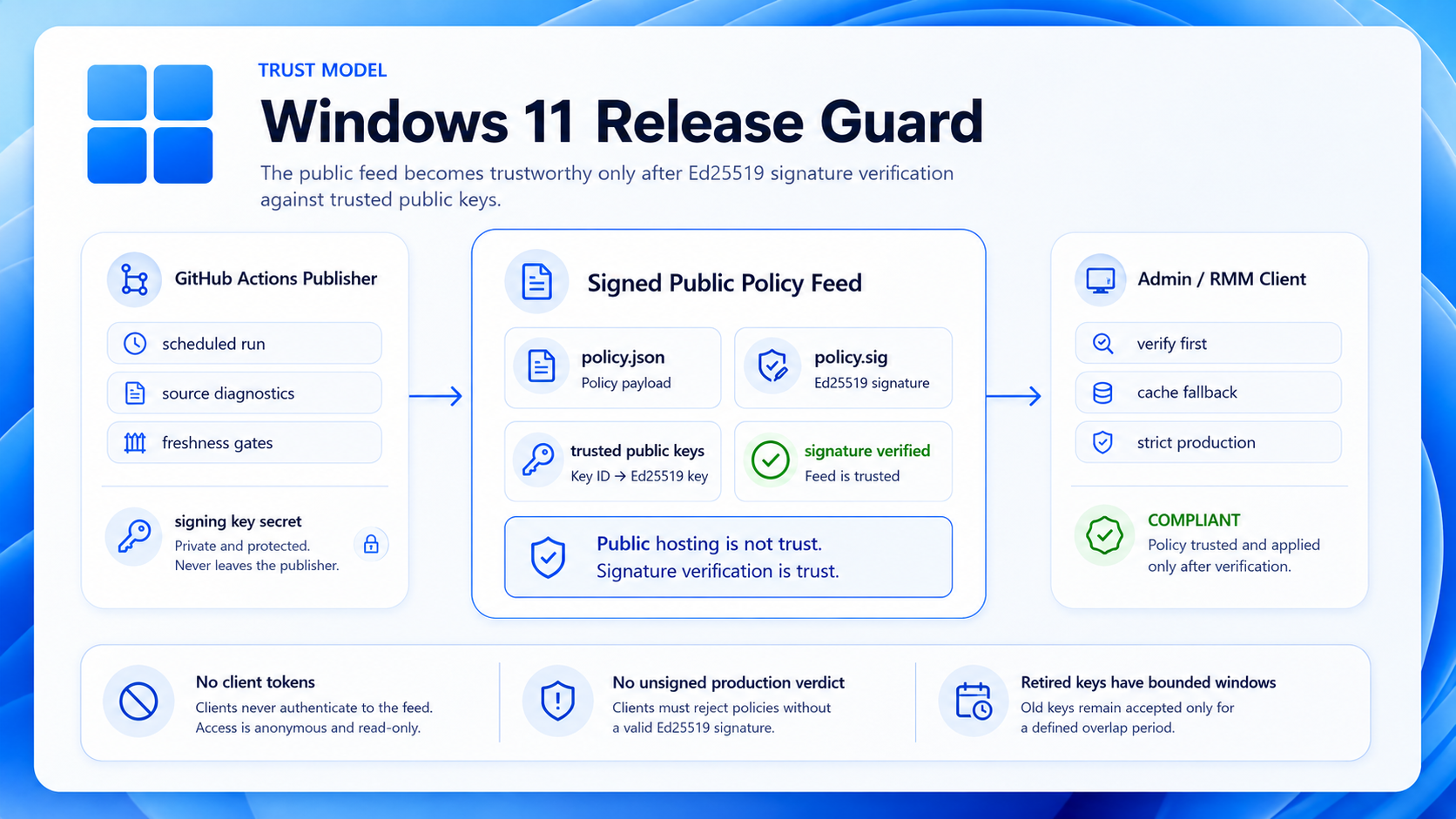

Windows 11 Release Guard trust model showing signed policy feed verification before client trust


Public Artifacts

ArtifactURL / pathPurpose
Policy JSON/windows-release-policy.jsonCanonical policy document.
Signature/windows-release-policy.json.sigDetached Ed25519 signature metadata.
Manifest/policy-manifest.jsonHashes, freshness fields, source diagnostics, published URLs.
API policy/api/v1/policy.jsonStable policy alias.
API signature/api/v1/policy.sigStable signature alias.
API manifest/api/v1/manifest.jsonStable manifest alias.

Trust Rules

The Pages feed is public so clients can fetch it without credentials, but public hosting is not the trust boundary. Runtime clients first download the policy bytes, then verify the detached Ed25519 signature over those exact bytes with a committed trusted public key. Only a matching signature and known key_id make the policy eligible for use.

Key rotation is deliberately conservative. A retiring key can remain trusted for old signatures, but verify_not_after_utc limits the point after which fresh signatures from that key are no longer accepted. This keeps the public static feed easy to mirror while still making tampering, stale key use, and accidental API alias drift visible to clients and checks.

RuleDetail
Public data is not automatically trusted.Runtime verifies the detached signature before accepting policy bytes.
Key lookup uses key_id.Committed public keys live in win11_release_guard/data/trusted_policy_keys.json.
Private signing key is never committed.GitHub Actions secret stores the production private key.
Retiring keys stay bounded.verify_not_after_utc prevents fresh signatures from retired/retiring keys after their window.
/api/v1 stays compatible.Add fields compatibly; do not remove paths during the compatibility window.

JSON Hardening

GuardBehavior
Duplicate keysRejected by strict JSON parsing.
NaN / InfinityRejected as non-finite JSON numbers.
Non-object top levelRejected where objects are required.
Size capsPolicy, manifest, signature, cache, and trusted-key payloads are bounded before parsing.
Unknown additive keysAllowed as forward-compatible warnings unless schema rules reject them.

Fallback Order

OrderSourceSource status
1Live signed remote JSONREMOTE_POLICY_OK
2Verified fresh cacheUSING_FRESH_CACHE
3Verified stale cacheUSING_STALE_CACHE
4Bundled signed policyUSING_BUNDLED_POLICY
5No valid sourcePOLICY_UNAVAILABLE / CHECK_INCOMPLETE

Baseline And Preview Semantics

The dashboard shows two build numbers that are easy to mix up: latest_build and latest_observed_build. latest_build is the value Microsoft Release Health currently publishes in the slow-moving Current Versions table. latest_observed_build is the newest official Microsoft-observed build found by the generator across supported public source evidence, including Atom-linked Support articles. It is useful context when a device is ahead of the normal fleet baseline, but it does not decide compliance by itself.

required_baseline_build is the minimum signed build this policy currently requires for existing Windows 11 fleet devices. Devices below that build need a quality update. A newer Atom/support observed build can appear as latest_observed_build without becoming the required baseline for the fleet. When Release Health Current Versions has caught up and the baseline rules select that same build, latest_build, latest_observed_build, and required_baseline_build can all legitimately carry the same build number. When the selected required_baseline_build comes from a real non-preview, non-OOB Release Health B-release row and matches latest_observed_build, the dashboard may show a 14-day informational baseline-update notice. That notice is generated from local Release Health, Atom, validated Support, and exact MSRC facts; expired or inactive notice metadata does not fetch optional Support/MSRC enrichment solely for stale historical notice data. It does not change the signed policy verdict, baseline selection, runtime client behavior, issue sync, or public /api/v1 contract.

Atom-linked evidence stays bounded by source-trust rules. Safe Support article URLs are canonicalized before use, direct Atom links are revalidated before they become public metadata or dashboard/export links, and Release History enrichment prefers Atom entries matching both KB and row build. Support article URL, KB, build, and parseable release/applicability must match before article facts can affect summaries or Support-derived security labels. MSRC security classification requires exact KB remediation evidence and remains unknown when CVRF data is malformed or unavailable.

Field / termMeaning
latest_buildMicrosoft Release Health Current Versions table value.
baseline_buildRequired broad-fleet quality baseline.
required_baseline_buildExplicit required baseline used by current readers.
latest_observed_buildNewest official Microsoft-observed build from supported public evidence, including Atom-linked Support articles.
B-releaseDefault required quality baseline.
D-previewCan explain a newer local build without becoming the default required baseline.

Manifest Hash Checks

CheckPurpose
policy_sha256Confirms downloaded policy bytes match the manifest.
signature_sha256Confirms signature bytes match the manifest when present.
API alias hashesConfirms public aliases match or are documented as compatible.

Verify

python -m win11_release_guard --self-test
python -m win11_release_guard --check-policy-source
python -m win11_release_guard --check-public-pages
pytest -q tests/test_signing.py tests/test_json_hardening.py tests/test_policy_source_cli.py

Common Mistakes

MistakeFix
Trusting public hosting without signature verification.Verify Ed25519 signature over exact JSON bytes.
Deleting old public keys during rotation.Keep retiring keys with bounded overlap.
Moving Pages URLs into source_urls.Keep public hosting URLs in published_urls; upstream Microsoft inputs stay in source_urls.
